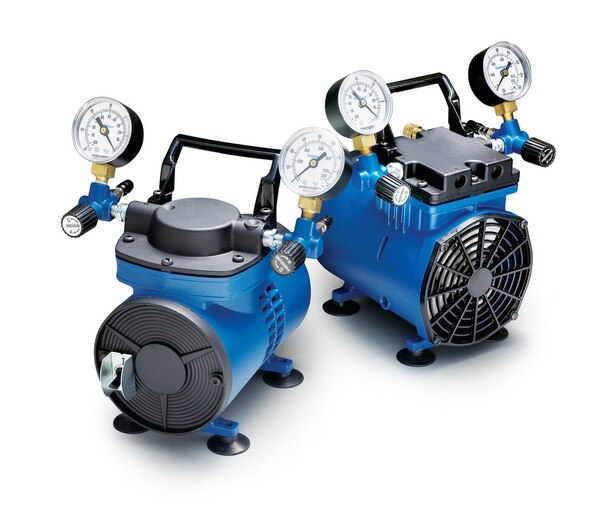

BOMBA DE VÁCUO / PRESSÃO DE ALTA VAZÃO 115V/60HZ MILLIPORE

Bomba de vácuo/pressaõ de alta vazão diafragma flex 115V / 60Hz (até 27 pol. Hg) Millipore Specifications Performance Vacuum 27.2 inches of Hg Pressure 50 psi continuous, 80 psi intermittent Regulatory Compliance 115 V UL/CSA recognized; 230 V CE compliant 2004/108/EC 2006/95/EC 98/37/EC Sound Level Less than 60 dB(A) Dimensions Length 8.0 in. (20.3 cm) Width 9.0 in. (22.9 cm) Height 9.8 in. (24.9 cm) Weight (approximate) 11 lbs (5 kg) Tubing Connectors Stepped 1/4 in. hose barb Materials of Construction Body and pump head Die cast aluminum Pump Type Piston with PTFE seal Leaf valves High grade stainless steel Electrical Specifications: AC shaded-pole, single phase, 1/7 HP motor 3-pronged, grounded cord and plug Line voltage limits ±10% of supply voltage Environmental Conditions Temperature 5 °C (41 °F) to 40 °C (104 °F) Relative Humidity, Max. 80% for temperatures up to 31 °C, decreasing to 50% at 40 °C Altitude, Max. 2000 meters Pollution Degree 2, per IEC 664 (indoor usage: lab, office, etc.) Installation Category II, per IEC 624 (local level: appliances, portable equipment, etc.)
